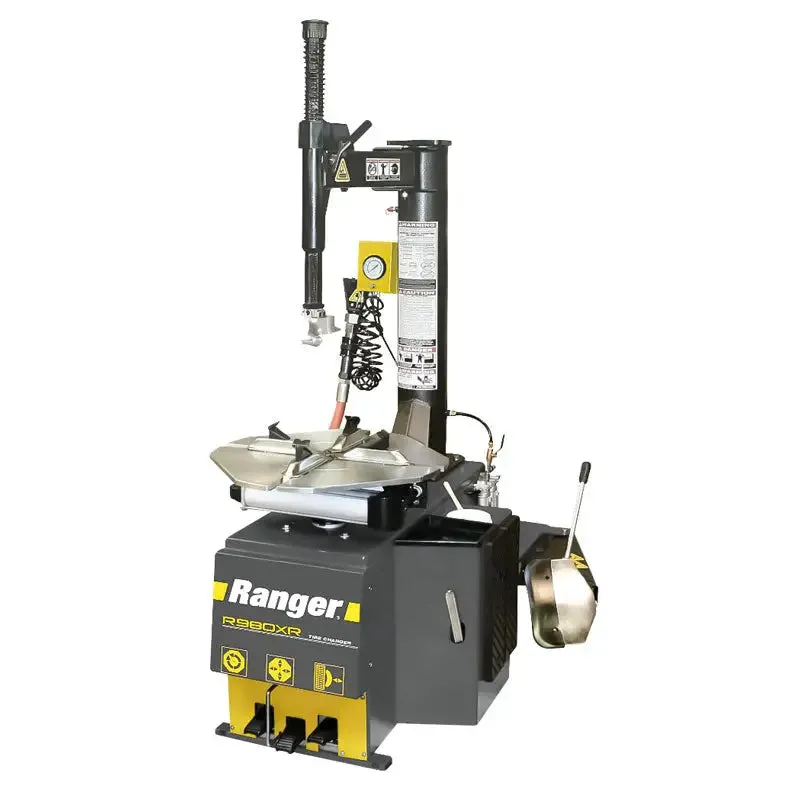

Ranger R980XR is designed to get the space-saving benefits of the Ranger R980AT without the addition of an assist-tower, the R980XR is a perfect alternative tire changer. It's for general repairs on a wide range of tires, including racing tires, pickup trucks, and tire beads that won't put up much of a fight. A host of innovations make the new NextGen series, R980XR one of the most durable, and ergonomically engineered tire changers ever.
Features:
- Fast Tire Changes, Simplified Swing-Arm Design
- Designed to Perform, Built to Last
- Electric Turntable
- Traveling Drop-center Top-mount Helper / Swing-in Bottom Helper Disc
- Updated Electric Motor
- Upfront Controls
- Stainless steel and aluminum pneumatic cylinders
- Balanced Flywheel
- Bead-breaker Design
- Enhanced Bead-breaker Blade
- Multi-function Mount & Demount head
- Pneumatic Control Valves
- Adjustable RimGuard Wheel Clamps
- Easier Bead Lubrication
- Simple foot-pedal control
- Pneumatic Tubing
- TurboBlast Bead Seating
- Standard Wheel Service Accessories
- Sealed Electrical Components
- Advanced Drive Belt System
- Spring-assisted Tool Shaft
- Foot-controlled Tire Inflator
- Optional Motorcycle clamps Available
Specs:
Maximum Tire Diameter: 50in (1,270 mm)Internal Rim Clamping Capacity: 10in - 30in ( 254 mm - 762 mm)
External Rim Clamping Capacity: 9in - 28in (229 mm - 711 mm)
Turntable Tire Width Capacity (Mounting): 4in - 18in (102 mm - 457 mm)
Bead Breaker Tire Width Capacity (Demounting): 1.5in - 16in (38 mm - 406 mm)
Wheel Clamping Method (Adjustable Clamps): 4 Clamps - Internal / External
Table Clamping System: Dual Pneumatic Cylinders
Bead Breaking System: Pneumatic Blade / Dual
Style: Fixed Tower Design
Assist Type: Single-Tower Assist
Tower Design: Rigid / Fixed
Power Assist Towers: N/A
Bead Seating System: Turbo Blast / Bead Seating
Speed: Standard
Motor: 3 HP (220 VAC / 50-60 HZ)
Drive System Type: Electric / Air
Air Requirement: 140-165 PSI (10-11 BAR)
Shipping Dimensions: 43in x 51in x 44in (1,092 x 1,295 x 1,117 mm)
Shipping Weight: 716 lbs. (324 kg)
